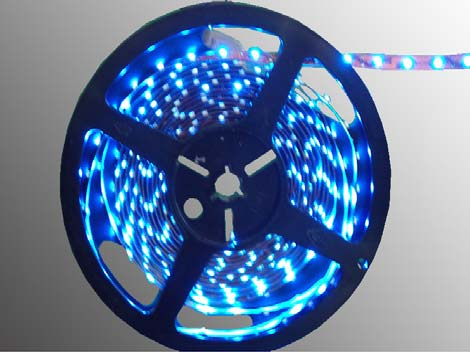

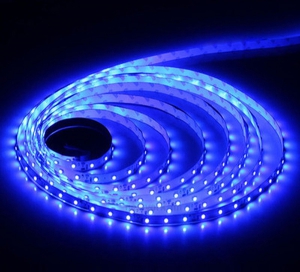

Name：Non Waterproof Flexible 5 Meters Warm White SMD 3528 30 LED 12V LED Light Strip

Model：BETTER 3528FX30-12X

Category：Non-Waterproof Strip Light

Product Features：
1. Wide applicability，easy to install andmaintain,longlifespan
2. Very flexible, easily be curved to anyshape.Variouscolorsavailable.
3. Extremely luminous，with wide viewingangle.
4. Energysavingandenvironment-friendly.

Description Parameter

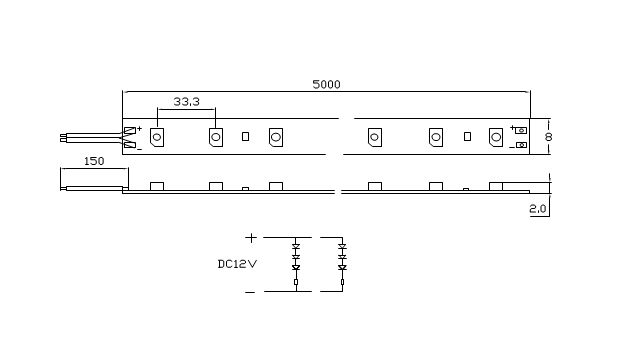

Dimension: L5000mm*W8.0mm*H2.0mm
Quantity of leds: 30 SMDs/M, 150 LEDs/pcs.
Thickness of PCB: 0.25mm
Voltage: DC 12V(24V)
Power dissipation: 2.4W, every 3 LEDs can be cut(12V), every 6 LEDs can be cut(24V).
Forward current: 1A/reel
Viewing angle: 120 degree
Packing: 5m/reel
Color: Red, Yellow, Blue, Green, White are optional.
PCB color: white, brown, black are optional.
Life span: 50000hs

LED light strips are used for kitchen cabinet lighting, living room cabinet lighting, bar and entertainment lighting, patio and pool lighting, boat lighting and so much more! LED light strips can also be set with many different animation options and can even be synced to flash to the beats of sounds and music with our specialty LED accessory options. Not only are LED light strips flexible and can be secured in hard to reach places. You will need a power supply with most of our LED light strips.

Cautions:
Linear separable LED strip on flexible printed circuit board with self-adhesive back.
Each unit of 3 LEDs can be cut out as a regular segment without damaging the rest ribbon.

Electrical/Optical Characteristics:

Part No.	Color	Operating Voltage	LED Quantity/m	Length	λd/TCC	Luminous flux(Lm)/m	Power Dissipation/m
FX3528R30	Red	DC12	30	5m	620-625nm	45-65	2.4W
FX3528Y30	Yellow	DC12	30	5m	587-592nm	45-65	2.4W
FX3528G30	Green	DC12	30	5m	518-525nm	65-90	2.4W
FX3528B30	Blue	DC12	30	5m	465-470nm	18-32	2.4W
FX3528W30	White	DC12	30	5m	6500-7200 K	150-165	2.4W
FX3528WW30	Warm White	DC12	30	5m	3000-3300 K	135-150	2.4W
