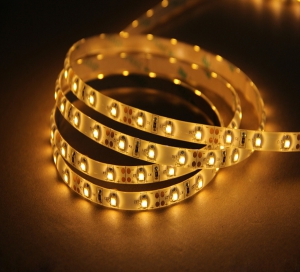

Name：3528 SMD Epoxy Cover LED Flexible Strip

Model：BETTER 3528FX30J-12X

Category：Waterproof Strip Light

Product Features：
1, Wideapplicability，easy to installand maintain, longlifespan.
2, Veryflexible,easilybecurvedtoanyshape.Variouscolorsavailable.
3, Extremely luminous，with wide viewingangle.
4, Energy saving and environmental conservation.
5, IP Grade: IP 65

Description Parameter

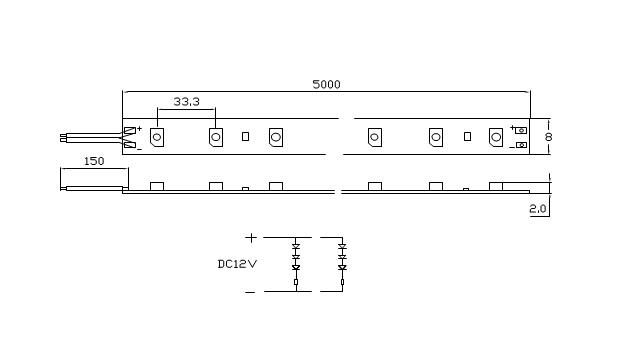

Dimension: L5000mm*W10mm*H2.6mm
Light Source: 3528 SMD (5050 SMD Available)
Quantity of leds: 30 SMDs/M, 150 LEDs/pcs.
PCB width: 0.25mm
Voltage: DC 12V(24V)
Power Dissipation: 2.4W, every 3 LEDs can be cut(12V), every 6 LEDs can be cut(24V).
Forward Current: 1A/reel
Viewing Angle: 120 degree
Packing: 5m/reel
Color: Red, Yellow, Blue, Green, White are optional.
PCB color: white, brown, black are optional.

Outdoor LED light strips are perfect for a variety of applications, including patio lighting, automotive/RV lighting, boat lighting, event lighting and more. Outdoor LED light strips should be used in places exposed to inclement weather or susceptible to interacting with any form of moisture. Outdoor LED light strips are flexible and durable and meant to stand the test of time!

Cautions:
Linear separable LED strip on flexible printed circuit board with self-adhesive back.

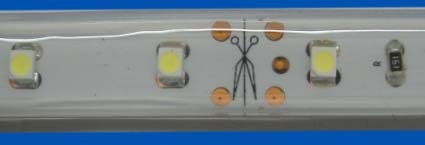

Each unit of 3 LEDs can be cut out as a regular segment without damaging the rest ribbon.

Electrical/Optical Characteristics:

Part No.	Color	Operating Voltage	LED Quantity/m	Length	λd/TCC	Luminous flux(Lm)/m	Power Dissipation/m
FX3528R30	Red	DC12	30	5m	620-625nm	40-60	2.4W
FX3528Y30	Yellow	DC12	30	5m	587-592nm	40-60	2.4W
FX3528G30	Green	DC12	30	5m	518-525nm	60-80	2.4W
FX3528B30	Blue	DC12	30	5m	465-470nm	15-30	2.4W
FX3528W30	White	DC12	30	5m	6500-7200 K	135-150	2.4W
FX3528WW30	Warm White	DC12	30	5m	3000-3300 K	120-135	2.4W
