Name：3528 SMD LED Waterproof Flexible Strip

Model：BETTER 3528FX30WP-12X

Category：Waterproof Strip Light

Product Features：
1, Wide applicability，easy to install and maintain,longlifespan.
2, Veryflexible,easilybecurvedtoanyshape.Variouscolorsavailable.
3, Extremely luminous，with wide viewing angle.
4, Energysavingandenvironment-friendly.
5, IP Grade: IP 67

Description Parameter

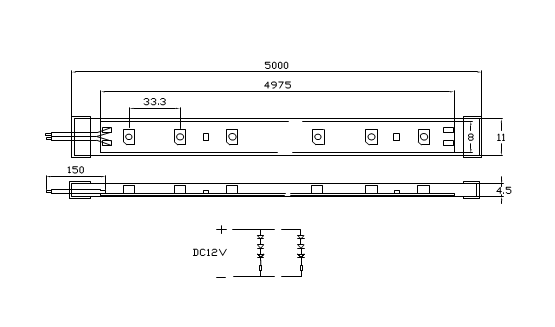

Dimension: L5000mm*W11mm*H4.5mm
Light Source: 3528 SMD (5050SMD Available)
Quantity of Leds: 30 SMDs/M, 150 LEDs/pcs.
Voltage: DC 12V(24V)
Power Dissipation: 2.4W, every 3 LEDs can be cut(12V), every 6 LEDs can be cut(24V).
Forward Current: 1A/reel
Viewing Angle: 120 degree
Packing: 5m/reel
Color: Red, Yellow, Blue, Green, White are optional.
PCB color: white, brown, black are optional.

Outdoor LED light strips are perfect for a variety of applications, including patio lighting, automotive/RV lighting, boat lighting, event lighting and more. Outdoor LED light strips should be used in places exposed to inclement weather or susceptible to interacting with any form of moisture. Our IP 67 rated LED light strips can be submerged in up to 1 meter of water for less than 30 minutes and are suitable for adding LED light to pool lining, hot tubs and fish tanks. Outdoor LED light strips are flexible and durable and meant to stand the test of time!

Cautions:
Linear separable LED strip on flexible printed circuit board with self-adhesive back.
Each unit of 3 LEDs can be cut out as a regular segment without damaging the rest ribbon.

Electrical/Optical Characteristics:

Part No.	Color	Operating Voltage	LED Quantity/m	Length	λd/TCC	Luminous flux(Lm)/m	Power Dissipation/m
FX3528R30	Red	DC12	30	5m	620-625nm	45-65	2.4W
FX3528Y30	Yellow	DC12	30	5m	587-592nm	45-65	2.4W
FX3528G30	Green	DC12	30	5m	518-525nm	65-90	2.4W
FX3528B30	Blue	DC12	30	5m	465-470nm	17-30	2.4W
FX3528W30	White	DC12	30	5m	6500-7200 K	145-160	2.4W
FX3528WW30	Warm White	DC12	30	5m	3000-3300 K	130-145	2.4W
