Name：3528 Waterproof Silicone Tube and Epoxy Filled Flexible LED Strip

Model：

Category：Waterproof Strip Light

Product Features：
1, Wide applicability，easy to install and maintain,longlifespan.
2, Veryflexible,easilybecurvedtoanyshape.Variouscolorsavailable.
3, Extremely luminous，with wide viewing angle.
4, Energysavingandenvironment-friendly.
5, IP Grade: IP 68

Description Parameter

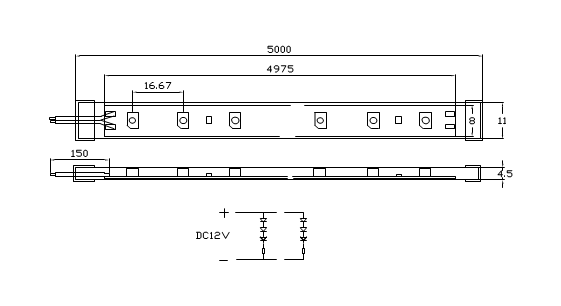

Dimension: L5000mm*W11mm*H4.5mm
Light Source: 3825 SMD (5050 SMD Available)
LED Quantity: 300 SMDs/pcs, 60 1210 SMDs/m
Thickness of PCB: 0.25mm
Working Voltage: DC 12V
Power Dissipation: 4.8W, every 3 LEDs can be cut(12V), and every 6 LEDs can be cut(24V)
Working Current: 2A/reel
Viewing Angle: 120 degree
Packing: 5m/reel
Color: Red, Yellow, Blue, Green, White and Warmwhite are available
Color of PCB: white, brown, black are available

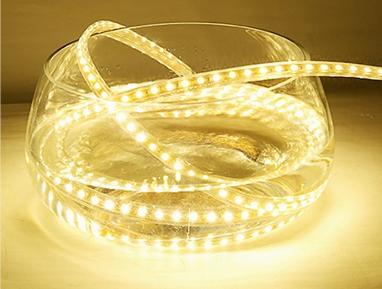

IP68 LED light strips are manufactured similar to IP67s and are completely “waterproof.” The main difference betwwen IP68 and IP67 is that IP68 strips can be submerged in more than 1 meter of water, for more than 30 minutes. These waterproof LEDs offer a perfect solution for areas susceptible to inclement weather and when strips will be consistently wet. They are usually used for many outdoor projects, including garden lights, pools, hot tubs, fountains, tank lighting, etc. and are great products for producing underwater lighting effects on your boat.

Cautions:
Linear separable LED strip on flexible printed circuit board with self-adhesive back.
Each unit of 3 LEDs can be cut out as a regular segment without damaging the rest ribbon.

Electrical/Optical Characteristics:

Part No.	Color	Operating Voltage	LED Quantity/m	Length	λd/TCC	Luminous flux(Lm)/m	Power Dissipation/m
FX3528R30	Red	DC12	60	5m	620-625nm	95-130	4.8W
FX3528Y30	Yellow	DC12	60	5m	587-592nm	95-130	4.8W
FX3528G30	Green	DC12	60	5m	518-525nm	130-180	4.8W
FX3528B30	Blue	DC12	60	5m	465-470nm	35-60	4.8W
FX3528W30	White	DC12	60	5m	6500-7200 K	300-330	4.8W
FX3528WW30	Warm White	DC12	60	5m	3000-3300 K	265-300	4.8W
